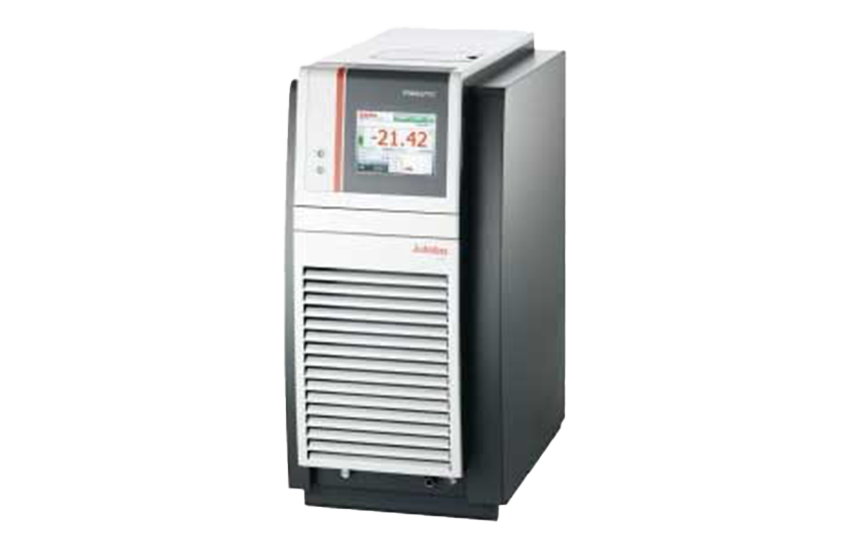

PRESTO A30/A38/A40/W40/A41/W41

The smaller PRESTO process systems are available with natural or synthetic refrigerants, depending on the model, and cover a working temperature range from -45 °C to +250 °C.

PRESTO A30 PRESTO A38

PRESTO A40 PRESTO A41

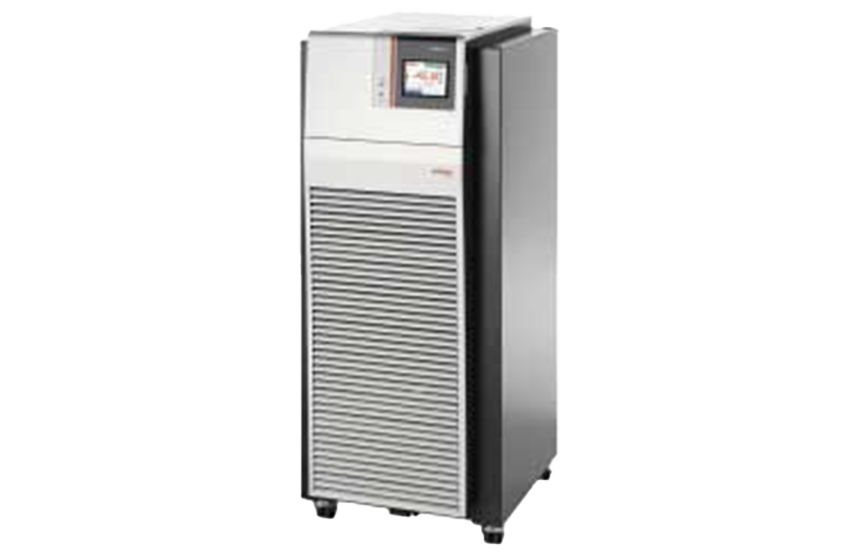

PRESTO A45/A45t

The A45 air-cooled process system can be used flexibly and independently of cooling water supply. They compensate exothermic and endothermic reactions extremely quickly.

Details:

FlexiRack to regulate flow rate for external applications connected to pump connections of JULABO PRESTO units.

Usable bath fluids: Thermal HL30, Water-Glycol

Consisting of flow meter and bypass, fully assembled

Measurement principle: Electromagnetic

Working temperature range : -40 °C … +130 °C

Measurement accuracy: 3.21 … 0.53 %

Flow control range: 1…max l/min 1)

Fluid connections: M30x1.5 male

Pipe diameter: DN25

Signal output: 4...20 mA

PRESTO A45

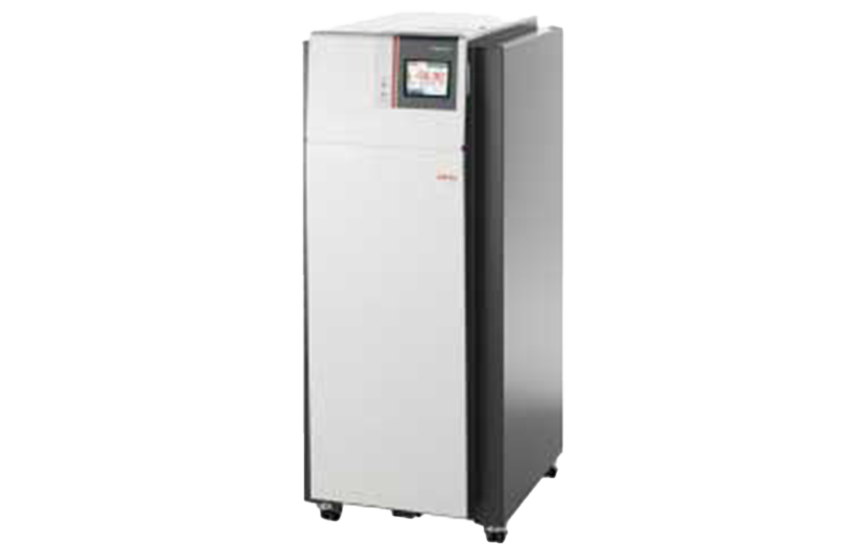

PRESTO W50/W50t

The rapid compensation of reactions even at higher ambient temperatures is the domain of the water-cooled W50 units. High heating and cooling capacity paired with powerful pumps.

Details:

FlexiRack to regulate flow rate for external applications connected to pump connections of JULABO PRESTO units.

Usable bath fluids: Thermal HL30, Water-Glycol

Consisting of flow meter and bypass, fully assembled

Measurement principle: Electromagnetic

Working temperature range : -40 °C … +130 °C

Measurement accuracy: 3.21 … 0.53 %

Flow control range: 1…max l/min 1)

Fluid connections: M30x1.5 male

Pipe diameter: DN25

Signal output: 4...20 mA

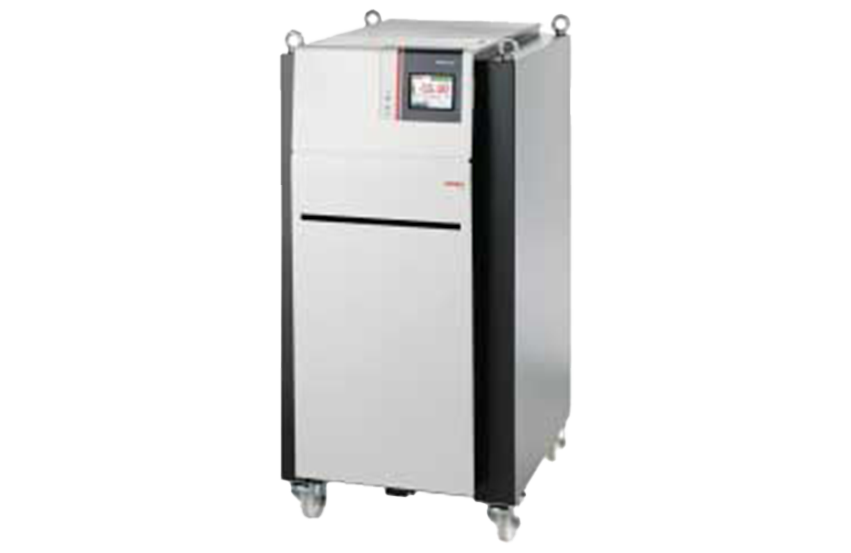

PRESTO W55

The powerful W55 regulates temperatures with high precision and convinces with faster cool-down and heat-up times. It is ideal for use in large external applications such as reactor temperature control, material stress testing or temperature simulation.

Details:

FlexiRack Flow control solution MID DN 15 for PRESTO W55 FlexiRack to regulate flow rate for external applications connected to pump connections of JULABO PRESTO units.

Usable bath fluids: Thermal HL30, Water-Glycol

Consisting of flow meter and bypass, fully assembled

Measurement principle: Electromagnetic

Working temperature range : -40 °C … +130 °C

Measurement accuracy: 1.56 … 0.51 %

Flow control range: 1…max l/min 1)

Fluid connections: M30x1.5 male

Pipe diameter: DN15

Signal output: 4...20 mA

PRESTO W55

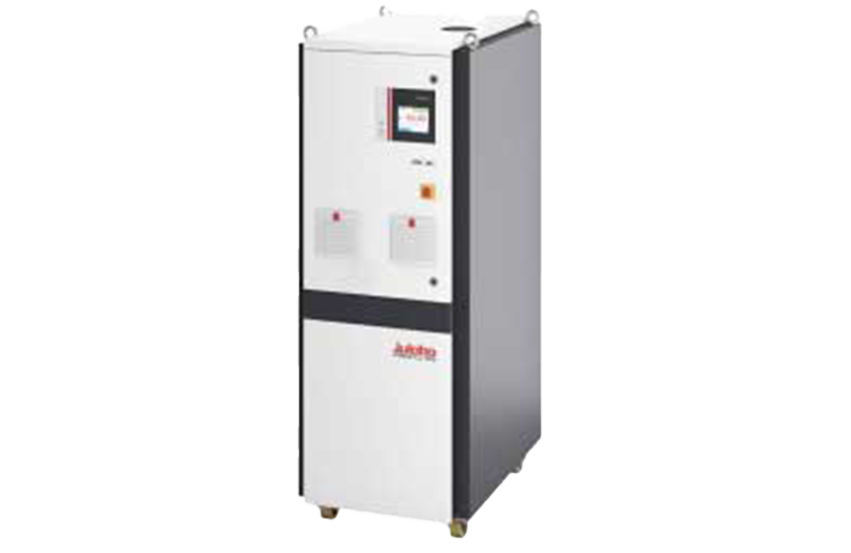

PRESTO W56/W58

The water-cooled PRESTO W56, W56x, and W58x can temperature control applications with high performance requirements very quickly and efficiently. Even at low temperatures, these models have large power reserves for demanding external applications.

Details:

FlexiRack to regulate flow rate for external applications connected to pump connections of JULABO PRESTO units.

Usable bath fluids: Thermal HL30, Water-Glycol

Consisting of flow meter and bypass, fully assembled

Measurement principle: Electromagnetic

Working temperature range : -40 °C … +130 °C

Measurement accuracy: 1.56 … 0.51 %

Flow control range: 1…max l/min 1)

Fluid connections: M30x1.5 male

Pipe diameter: DN15

Signal output: 4...20 mA

PRESTO W56 PRESTO W58
